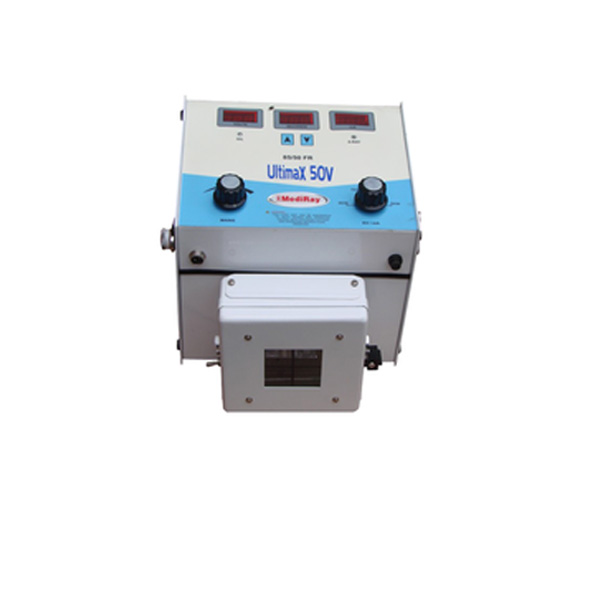

Truly Portable Carry away box type machine.

Voltage Overload Protection.

Tape Built FFD Measurement

Micro Processor Based Digital with Accuracy of 0.01Sec.

Exposure Time can be set by Soft Button.

Hand Switch for Exposure in single touch.

Weight: 21kgs.

Machine Safety Devices - Electronic Sensor to protect X-Ray Tube & High Voltage transformer from overloading, Quick Trip Overload Circuit Breaker, Fuses for all circuits in the machine

Power Requirement - 3KVA, 220 Volts, Single Phase, AC supply Max Allowable Line Regulation 10%

kvp range - 30 to 85 KVP in Steps of 5 KVP/Step.

Rating – Radiography - 50mA at 50 kVp 40mA at 65 kVp 30mA at 85 kVp

X-Ray Machine - 50mA-50 KVP Full Wave Rectified X-Ray Generator having Stationery Anode X-Ray Tube as per ISI Specifications.

Control with inbuilt Tube Head - Compact control panel having independent Voltmeter to indicate line voltage. mA meter, Booster transformer is provided in control panel for stabilization of filament voltage. Technique selector for selection of Radiographic mA, kvp selector from 30 to 85 & Time Selector for selection of Radiation time, Standby & Exposure switches. 1.5 mm sq. Focal Spot X-Ray Tube Stationary anode

Output - 50mA 8 kW as per ISI (7620-Part-I)

Timer - Solid State Electronic Timer with timing range from 0.06 to 6 Sec. in 23 steps.
