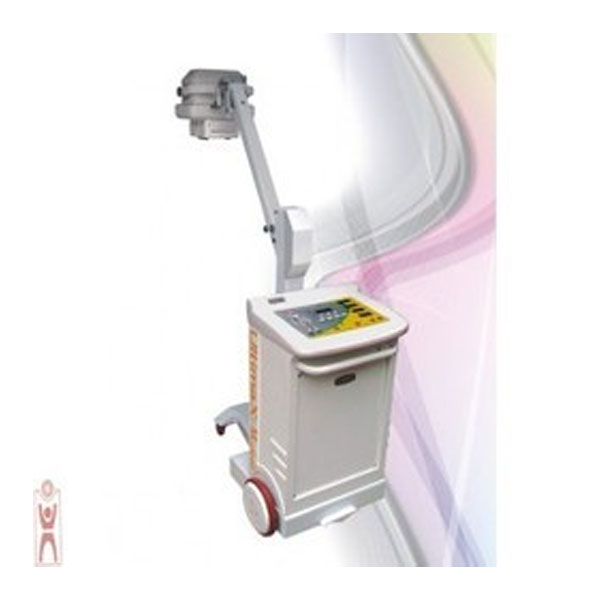

100mA-100KVP Full Wave Rectified X-Ray Generator, Electronic touch panel with 628 Anatomical programs with Human Body With Remote (optional) Florescent display for large and clear view of KVP, mA, mAs and seconds with 20x4 character LCD.

Machine Safety Devices - Electronic Sensor to protect X-Ray Tube & High Voltage transformer from

                                                        overloading Quick Trip Overload

                                                        Circuit Breaker Fuses for all circuits in the machine.

Power Requirement - 8 KVA,220 Volts, Single Phase, AC supply Max Allowable Line Regulation10%.

kVp range - 30 to 100 KVP in Steps of 1 KVP/Step.

Rating - Radiography - 100mA at 30 to 65 KVP,

                                                 50mA at 30 to 90 KVP,

                                                  25mA at 30 to 100 KVP

X-Ray Machine  -  100mA-100KVP Full Wave Rectified X-Ray Generator having Stationery Anode

                                          X-Ray Tube as per ISI Specifications

Control - Electronic touch panel with 628 Anatomical programs with Human Body Skeleton display for

                       simpler and easier target as per  your desired X-Ray.Florescent display for large and clear view of

                       KVP, mA, mAs and  seconds with 20x4 character  LCD.

Tube head   - Stationery Anode X-Ray Tube, Compact Heavy Duty Full Wave Rectified H.T. Transformer,

                              high Voltage Silico  Rectifiers  etc. all immersed in High-Grade Transformer oil. (Self-contained).

Output - 8 kW as per ISI (7620-Part-I)

Timer - Electronic Timer with timing range from 0.01 to 10 Sec. in 1000 steps

Accessories  -  Light beam cum shutter diaphragm

Operate - Easy to operate feather touch panel with remote(optional)

Display - Digital display in Kvp,mAs,mA.Sec
